pipeline cutting beveling machine

Name: pipeline cutting beveling machine
Brand: WELLNIT
Price: 1000 USD

Brand Name : WELLNIT

Model Number : OCP-508

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1

Price : usd1000

Payment Terms : L/C, T/T

Supply Ability : 20Sets per day

Delivery Time : 5-8days

Packaging Details : WOODEN BOX

Automation : Automatic

Voltage : 220-240V

Pipe OD : 355-508mm(14''-20'')

Mounting Method : Split OD Mount

Rotation speed : 10r/min

Driven : Pneumatic Motor

Pipe Thickness : ≤30mm

Body : Aluminum cs

Material : Metal

Contact Now

Production Description

Portable Automatic Gas and Oil Pipe Cutting Machine

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.

Features:

Cold Cutting and Beveling improves safety
Cutting and Beveling simultaneous
Split Frame: easy mounted on pipeline
Tools feed automatically
Fast, Precision, On-site Beveling
Minimal Axial and Radial clearance
Light weight and compact design
Easy set-up & Operation

Spcification:

Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed
OCE/ OCP-89	Φ25-89	3/4''-3''	≤35	42r/min
OCE/ OCP-159	Φ50-159	2''-5''	≤35	20r/min
OCE/ OCP-168	Φ50-168	2''-6''	≤35	18r/min
OCE/ OCP-230	Φ80-230	3''-8''	≤35	15r/min
OCE/ OCP-275	Φ125-275	5''-10''	≤35	14r/min
OCE/ OCP-305	Φ150-305	6''-10''	≤35	13r/min
OCE/ OCP-325	Φ168-325	6''-12''	≤35	13r/min
OCE/ OCP-377	Φ219-377	8''-14''	≤35	12r/min
OCE/ OCP-426	Φ273-426	10''-16''	≤35	12r/min
OCE/ OCP-457	Φ300-457	12''-18''	≤35	12r/min
OCE/ OCP-508	Φ355-508	14''-20''	≤35	12r/min
OCE/ OCP-560	Φ400-506	16''-22''	≤35	12r/min
OCE/ OCP-610	Φ457-610	18''-24''	≤35	11r/min
OCE/ OCP-630	Φ480-630	20''-24''	≤35	11r/min
OCE/ OCP-660	Φ508-660	20''-26''	≤35	11r/min
OCE/ OCP-715	Φ560-715	22''-28''	≤35	11r/min
OCE/ OCP-762	Φ600-762	24''-30''	≤35	11r/min
OCE/ OCP-830	Φ660-813	26''-32''	≤35	10r/min
OCE/ OCP-914	Φ762-914	30''-36''	≤35	10r/min
OCE/ OCP-1066	Φ914-1066	36''-42''	≤35	10r/min
OCE/ OCP-1230	Φ1066-1230	42''-48''	≤35	10r/min

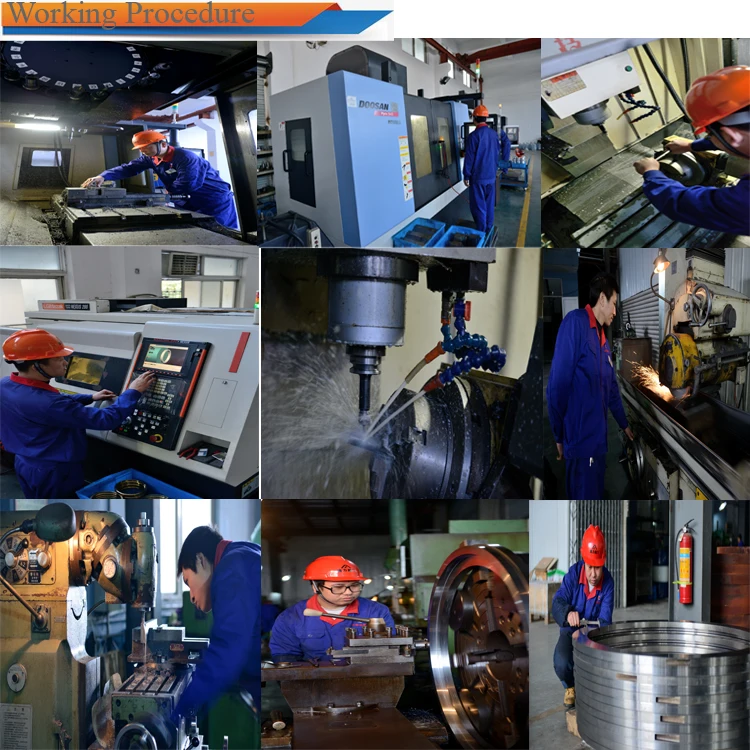

Our workshop:

Order guider:

Before you place order to us, please let us know the following information:

Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)

Packaging & Delivery:

Packaging Details	Shrink-wrapped machine body inside, exported standard wooden case outside. 1 set/ WELLNIT standard case.
Delivery Time	Shipped in 3 days after payment
